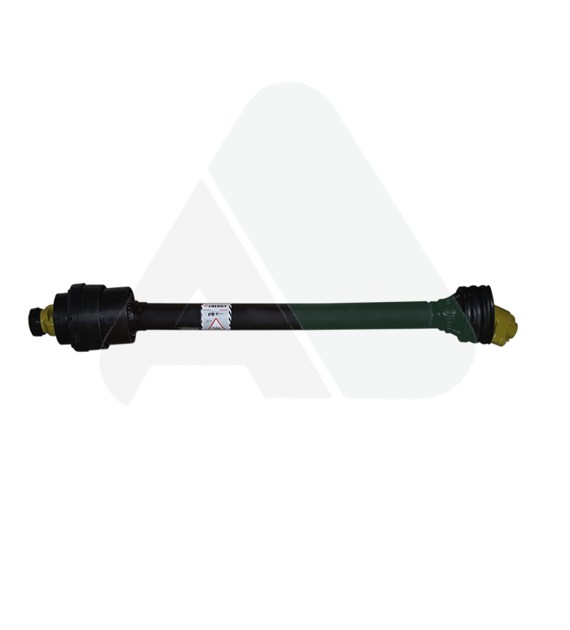

CV shaft with clutch, 2480, 790 N·m, 1210–1718 mm

Categories: PTO shafts \ Wide angle shafts (CV) \ One-sided Benzi & di Terlizzi

Prices

Prices visible for logged in users

References

Symbol

1858-7602-12121B

Logistics

Basic unit

pcs

Weight

28.7kg

Atributes

Minimal length:

1010-1510 mm

Range of nominal power:

700-1000 Nm

Safety clutch:

shear bolt

Brand:

Benzi & di Terlizzi

Tractor side:

1 3/8-6

Tube profile:

lemon

Machine side:

1 3/8-6

Inner tube:

40.0 x 4.8

Length:

1210 mm

Outer tube:

48.0 x 3.6

Nominal power:

790 Nm

Cross:

27.0 x 94.0 / 32.0 x 76.0 32.0 x 76.0

CV shaft with clutch, 2480, 790 N·m, 1210–1718 mm

Related products

	CV shaft with clutch, 2480, 790 Nm, 1210-1718 mm 1858-7600-12121M 1858-7600-12121M
	CV shaft with clutch, 2480, 790 N·m, 1210–1718 mm 1858-7602-12121P 1858-7602-12121P

Description

Tractor: slide collar 1 3/8-6, implement: push pin 1 3/8-6, profile: lemon. Example applications: roll balers, self-loading trailers

We have made every effort to ensure that the above information is accurate; however, we do not guarantee that the published data is free from errors, which therefore cannot constitute grounds for any claims.
